LC/PC DX SM Connector 0.9/2.0/3.0mm


The LC connector has a zirconia ceramic ferrule measuring 1.25mm O.D. with either a PC or APC end-face, and provides optimum insertion and return loss. The LC connector is used on small diameter mini-cordage 2.0mm,3.0mm, 0.9mm cable. LC Connectors are available in pre-assembled or kit (unassembled) formats. They feature self-adjusting panel latches and a choice of mounting orientations with labeled polarity. A choice of zirconia ceramic or phosphor bronze split sleeve is available.


  1. Low insertion loss and back reflection loss
  2. Ferrule end surface predomed
  3. Precision anti-rotation key and corrosion resistant body
  4. UL-rated plastic housing
  5. Boots in a variety of colors
  6. Telcordia style boots
  7. Free-floating ceramic ferrule


  • CATV
  • Active device termination
  • Telecommunication networks
  • Metro
  • Local Area Networks (LANs)
  • Data processing networks
  • Test equipment
  • Premise installation
  • Wide Area Networks(WANs)
  • Fixed key and activity key can be selected
  • For 3.0mm, 2.4mm, 2.0mm jacket or 900μm buffer.

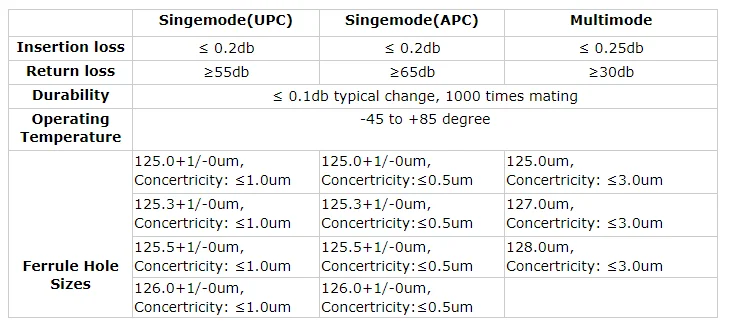

  • Insertion loss:
    0.20dB (SM)
    0.25dB (MM)
  • Return loss: 55dB (PC)
  • Fiber compatibility: 62.5/125μm/50/125μm multiple mode and 9/125μm single mode
  • Boot size: 3.0, 2.0 or 0.9mm
  • Connectors type: SC
2.0mm 3.0mm LC duplex singlemode optical fiber connector
